Images are for reference purposes only and product appearances/colours may vary.
The ASUS ExpertWiFi EBR63 is an all in one access point with router, switch and security gateway functionalities. It offers a fast, secure, and scalable network with rich features tailored for small-to-midsized businesses. Whether used independently or integrated with other ASUS ExpertWiFi solutions, the EBR63 can easily adapt to your business network needs. For remote employees or those running small businesses, ExpertWiFi provides stable and reliable internet connections. And with comprehensive VPN protocols, users can access their networks with site-to-site VPNs for encrypted office or home network connections, easily and securely. ExpertWiFi supports virtual local area network (VLAN) management. VLAN management enables an easy, fast and flexible way to segment the network wired and wirelessly. You can dedicate an Ethernet port that provides additional security for your business. The EBR63 provides reliable and stable internet access for business owners. With dual WAN support, you can set the USB port as a backup WAN by connecting it to your mobile phone with a hotspot. No complicated setup is needed — just plug it in and use it.
| Model | EBR63 |
| Wireless Standard | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Maximum Speed | 802.11a: Up to 54 Mbps 802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps WiFi 4 (802.11n): Up to 300 Mbps WiFi 5 (802.11ac): Up to 1734 Mbps WiFi 6 (802.11ax) (2.4GHz): Up to 574 Mbps WiFi 6 (802.11ax) (5GHz): Up to 2402 Mbps |
| Connectivity | 1 x 1Gbps RJ45 WAN 4 x 1Gbps RJ45 LAN Ports 1 x USB 3.2 Gen 1 1 x USB 2.0 |
| WPS | Yes |
| Security | Not Specified |
| Antennas | 4 x external |
| Warranty | 3 Years |
Detailed Information
| Model Name | EBR63 |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| WiFi Data Rate | 802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps WiFi 4 (802.11n): up to 300 Mbps WiFi 5 (802.11ac): up to 1734 Mbps WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps |
| Antenna | External Antenna x 4 |
| Transmit/Receive | 2.4GHz 2x2 5GHz 2x2 |
| Processor | 1.7 GHz Quad-Core Processor |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: Standard-Based and Universal 1024-QAM High Data Rate 20/40/80/160 MHz Bandwidth |
| Operating Frequency | 2.4 GHz 5 GHz |
| Operating Mode | Wireless Router Mode AiMesh Node Mode Access Point Mode |
| Ports | 1 x 1Gbps for WAN 4 x 1Gbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0 |
| Buttons | WPS Button Reset Button Power Switch |
| LED Indicators | 1 x Power 1 x WAN 1 x LAN 1 x 5G 1 x 2.4G |
| Power Supply | AC Input: 110-240v (50-60Hz) DC Output: 12V 2A |
| Package Contents | ExpertWiFi EBR63 RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight | 436 g |
| Product Dimensions | 225 x 127 x 146 mm |
| AiMesh | AiMesh
|
| Device Access Control | Web & Apps Filtering
|
| Dashboard | Dashboard |
| Self-Defined Network | Self-Defined Network Type
Multiple Network |
| Security | AiProtection
|
| AiProtection | AiProtection
|
| VPN | VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard Support Surfshark |
| Traffic Control | Adaptive QoS
Traffic Analyzer
|
| WAN | PPPoE
|
| LAN | DHCP Server IGMP Snooping IPTV VLAN |
| Wireless | MU-MIMO
Wireless Scheduler |
| USB Application | 4G / 5G Auto Mobile Tethering Media Server Samba Server FTP Server Shared Folder Privileges |
| User Interface | Web: ASUSWRT APP: ASUS ExpertWIFI APP |
| Administration | Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |

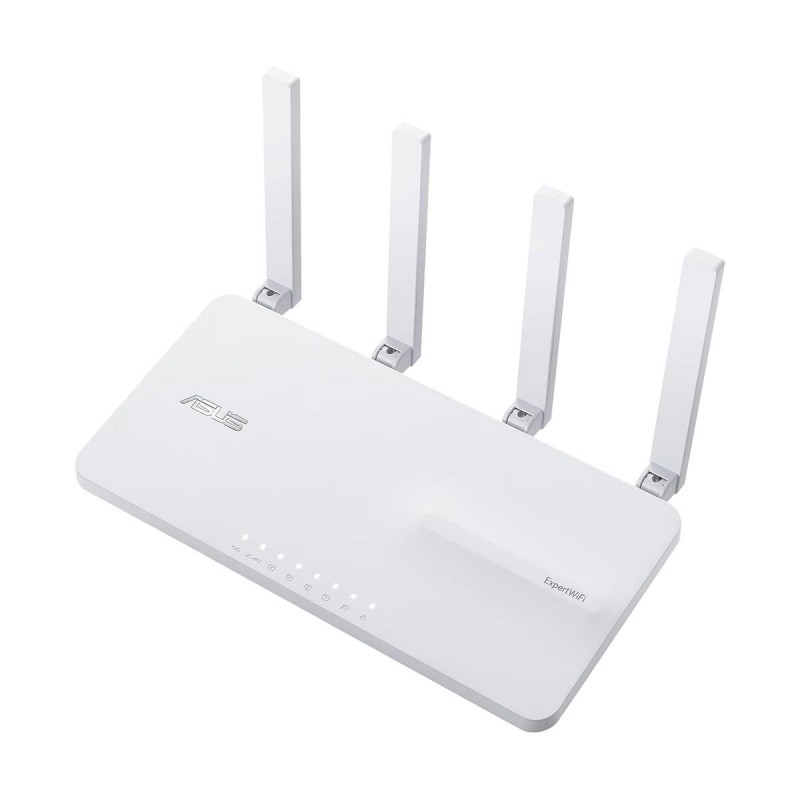

ASUS ExpertWiFi EBR63 AX3000 Wi-Fi 6 (802.11ax) Dual Band Mesh-Enabled Wireless Router
- Wi-Fi 6 Gigabit LAN Mesh-Enabled Router
- Commercial Grade with Enterprise Features
- Dual Band 2.4GHz, 5GHz
- 2.4GHz Wi-Fi 6 Bandwidth: Up to 574 Mbps
- 5GHz Wi-Fi 6 Bandwidth: Up to 2402 Mbps
- 1 x 1Gbps WAN
- 4 x 1Gbps LAN Ports
- 1 x USB 3.1 Gen 1 Type-A Port
- 1 x USB 2.0 Port
- Supports 3G / 4G Failover
- 4 x External Antenna
- 3 Year Warranty
- Product Code: 90IG0870-MO3C00
- Availability:
In Stock with Supplier
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
- In Stock with Supplier: 1-3 business days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
-
R3,543
WhatsApp Us
