Images are for reference purposes only and product appearances/colours may vary.

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current Wi-Fi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users. RT-AX58U is a 2x2 dual-band Wi-Fi router that provides 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band — RT-AX58U is 2.5X faster than 802.11ac 2x2 dual-band routers. With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.

ModelRT-AX58U
Wireless StandardIEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Maximum Speed802.11a: Up to 54 Mbps
802.11b: Up to 11 Mbps
802.11g: Up to 54 Mbps
WiFi 4 (802.11n): Up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM): Up to 1733 Mbps
WiFi 6 (802.11ax) (2.4 GHz): Up to 574 Mbps
WiFi 6 (802.11ax) (5 GHz): Up to 2402 Mbps
Connectivity
4 x 100/1000 RJ45 Ethernet Port + 1 x 100/1000 RJ45 WAN Port + 1 x USB 3.2 Gen 1 Port
WPSYes
SecurityWPS, WPA / WPA2 / WPA3-Personal, WPA / WPA2-Enterprise
Antennas
4 x external, detachable
Warranty
3 Years

Detailed Information

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFI 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product SegmentAX3000 ultimate AX performance: 2402 Mbps + 574 Mbps
AX TechnologyYes
Data Rate802.11a: Up to 54 Mbps
802.11b: Up to 11 Mbps
802.11g: Up to 54 Mbps
WiFi 4 (802.11n): Up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM): Up to 1733 Mbps
WiFi 6 (802.11ax) (2.4 GHz): Up to 574 Mbps
WiFi 6 (802.11ax) (5 GHz): Up to 2402 Mbps
AntennaExternal antenna x 4
Transmit/Receive2.4 GHz 2x2
5 GHz 2x2
Processor1.5 GHz tri-core processor
Memory256 MB Flash
512 MB RAM
Boosts SpeedOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency2.4 GHz / 5 GHz

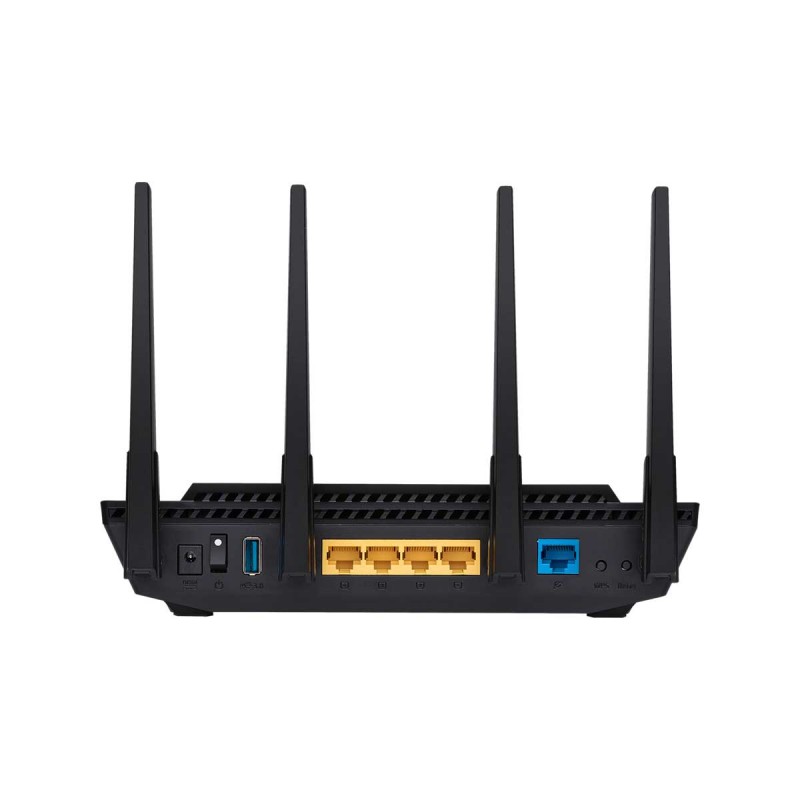

Ports1 x RJ45 for Gigabits BaseT for WAN, 4 x RJ45 for Gigabits BaseT for LAN
1 x USB 3.2 Gen 1
ButtonsWPS Button
Reset Button
Power Button
LED Indicators1 x Power
1 x 2.4 GHz
1 x 5 GHz
1 x WAN
4 x LAN
Power SupplyAC Input: 100v-240v (50-60Hz)
DC Output: 19v with max. 1.75A currnet / 12v with max. 2A current
Package ContentsRT-AX58U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight538g
AiMeshAiMesh
Primary AiMesh router
AiMesh node
Router APPASUS Router APP
AlexaSupport Alexa skill
AiProtectionAiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental ControlParental Control
Parental Control Customized Internet schedule
Traffic ControlAdaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
WirelessIPv6
Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LANDHCP Server
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64
VPNVPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
USB ApplicationFile System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
AdministrationOperating mode : Wireless router mode / Access point mode / Media bridge mode / Repeater mode / AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

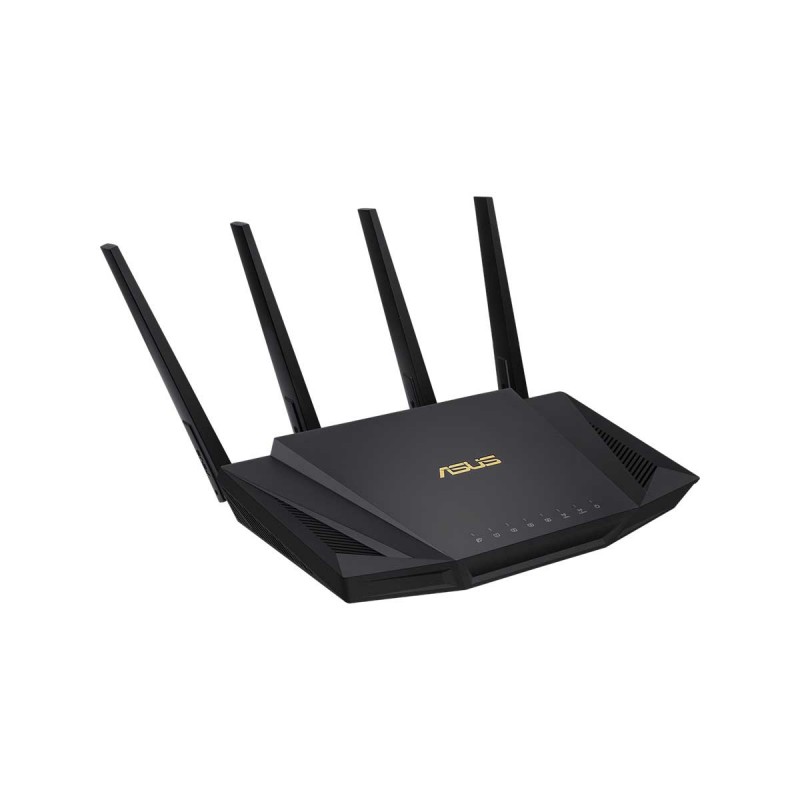

ASUS RT-AX58U AX3000 Wi-Fi 6 (802.11ax) AiMesh Mesh-Enabled Dual Band MU-MIMO Wireless Router

  • Product Code: 90IG06Q0-M03B00
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments
