A dual-band WiFi router ideal for streaming smooth video playback with a maximum of 100 Mbps internet access, featuring MU-MIMO and App control. MU-MIMO communicates with multiple devices simultaneously and reduce the latency. Beamforming boosts signal towards the connected devices. Reliable high-speed ports ensure low-latency, stable performance for streaming, gaming, and data transfer. Finish setup in minutes and know the system status at a glance with the status panel. Set a bedtime and a domain blacklist to regulate your children's online behaviour. PPTP/L2TP/WireGuard/OpenVPN allow you to connect multiple devices at once to your private or commercial VPN. WPA3 encrypts your wireless communication and protects your data from leaking. Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices. Manage your network from your phone. This model supports local control via the Cudy App.

ModelWR1200
Wireless StandardIEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Maximum Speed802.11ax (2.4GHz): Up to 300 Mbps
802.11ax (5GHz): Up to 867 Mbps
Connectivity
1 x 100Mbps RJ45 WAN / LAN Port
4 x 100Mbps RJ45 LAN Port
WPSYes
SecurityWPA/WPA2/WPA3/WPS
Antennas
4 x external
Warranty
1 Year

Detailed Information

Model VersionWR1200 2.0
CPU

Chipset

  • MT7628

CPU Details

  • 580 MHz Single Core, MIPS24KEC
Memory/Storage

Flash/ROM

  • 8 MB (64 Mbit) NOR

DDR/RAM

  • 64 MB (512 Mbit) DDR2
Wireless

5 GHz Wi-Fi Speed

  • 867 Mbps

2.4 GHz Wi-Fi Speed

  • 300 Mbps

5 GHz Wi-Fi Streams

  • 2T2R (2x2 MIMO)

2.4 GHz Wi-Fi Streams

  • 2T2R (2x2 MIMO)

Wi-Fi Antennas

  • 4 x Fixed

Beamforming

  • True

Range Performance

  • Max: 170m (558ft)
    • Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

  • Two wooden walls with thickness < 10 cm (4'')
  • One concrete wall with thickness < 20 cm (7'')
Interfaces

10/100 Mbps RJ45 Ports

  • 5

Ethernet Notes

  • 1 x WAN Port, the rest are LAN Ports

LED

  • Power
  • Internet
  • Speed/Link/ACT of Ethernet Port
  • Wi-Fi

Physical Buttons

  • WPS Button
  • Reset Button

Power Input

  • DC Jack
Power

Power Methods

  • DC

DC

  • 12V 1A

Power Adapter

  • Input: 100 - 240 V, 50/60 Hz AC
  • Output: 12V 1A DC
Reliability

Environment

  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
Mechanical

Installation

  • Desktop
  • Wall-mount

Dimensions

  • 220 x 135 x 30 mm

Product Weight

  • 259g

Package Contents

  • WR1200
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Warranty1 Year
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration1 Year
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

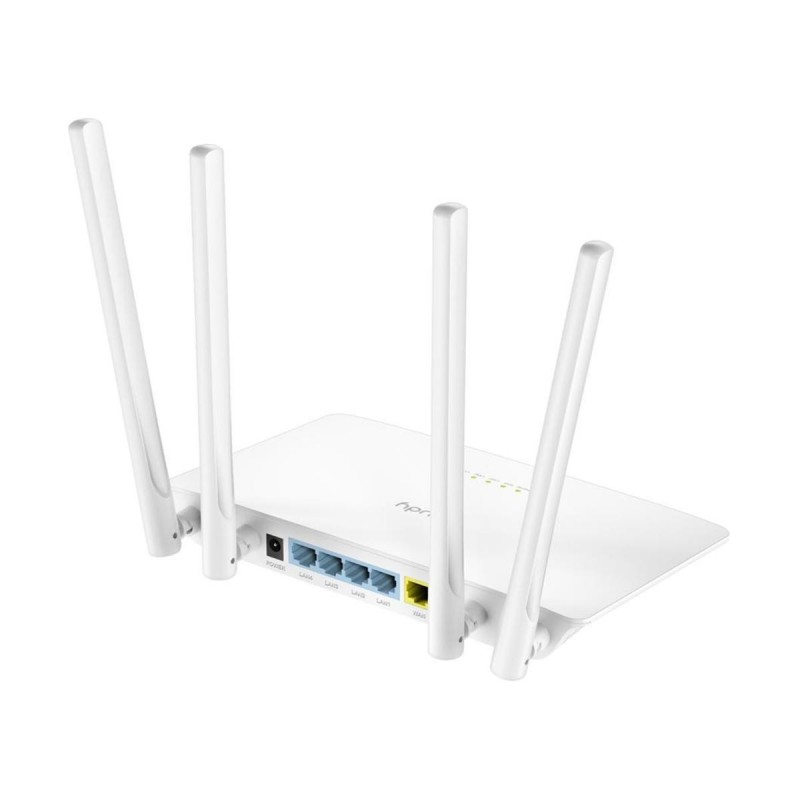

Cudy WR1200 AC1200 Wi-Fi 5 (802.11ac) Dual Band Wireless Router

- Wi-Fi 5 10/100 LAN Router
- Dual Band 2.4GHz & 5GHz
- 2.4GHz Wi-Fi 5 Bandwidth: Up to 300 Mbps
- 5GHz Wi-Fi 5 Bandwidth: Up to 867 Mbps
- 1 x 100 Mbps LAN / WAN Port
- 4 x 100 Mbps LAN Ports
- 4 x External Antenna
- 1 Year Warranty

  • Product Code: WR1200
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
  • R313



Price displayed is already subject to a 4% discount for EFT payments
