12Nm DD Power
The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.
21-Bit Magnetic Encoder With 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps.
Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response.
Reproduces exceptionally detailed force feedback.

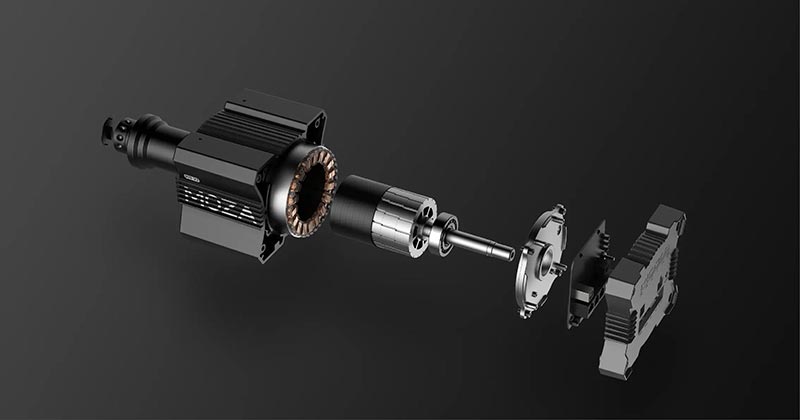

MOZA High-Performance Servo Motor
Race-grade Performance for Sim Racing

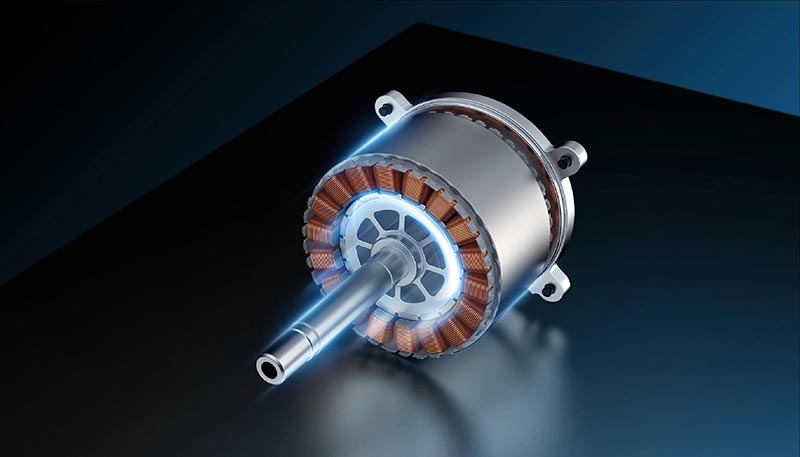

Innovative Segmented Rotor Design
Asymmetric segmented skew design.
Significantly reduces cogging torque & EM vibration.
Near-silent operation at all speeds.
High Torque Density
Optimized slot-fill copper windings.
High-permeability silicon steel core.
NdFeB permanent magnets for maximum output.

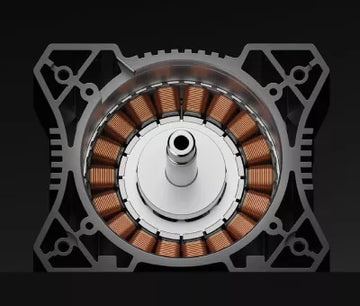

18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response.
Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off.
Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses.
Superior thermal management for sustained performance.
Custom Force Feedback Curve Tuning
Fully adjustable, non-linear output for precise handling.
Amplifies useful force cues while reducing distractions.
Helps drivers sense traction loss sooner, enhancing control and confidence.
iRacing 360Hz Mode
Unlocks richer, faster, and more responsive force feedback.
Heightens immersion and precision with every input.
Available via MOZA Pit House after the May iRacing update.
FFB Interpolation Algorithm
Smooths out abrupt spikes and dips in torque delivery.
Ensures a natural, progressive force curve under all driving conditions.
Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

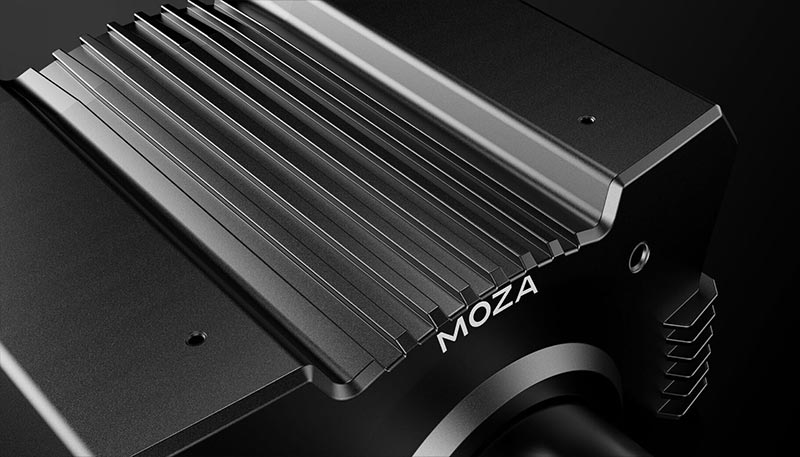

Aviation-grade Aluminum
Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

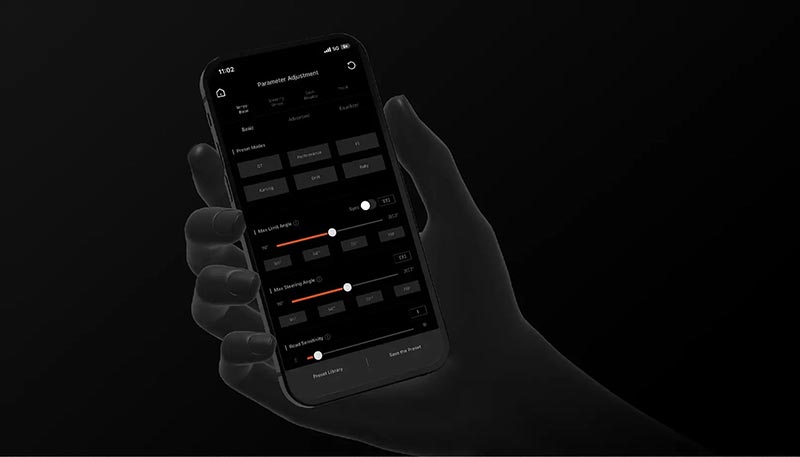

Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.

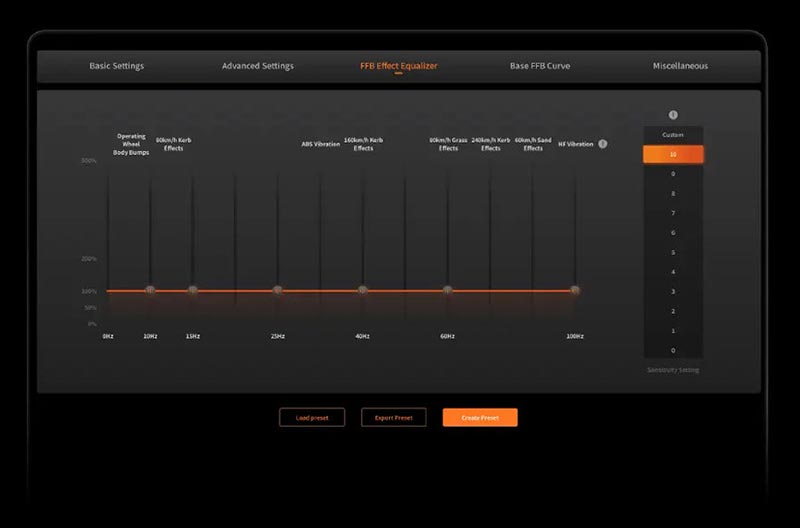

Smart Road Feel Equalizer
With the Smart Road Feel Equalizer, the software intelligently filters out distracting high-frequency vibrations while preserving critical traction cues. This makes it easier to sense understeer, oversteer, and surface changes.
Compatibility List
THESE GAMES FOR PC

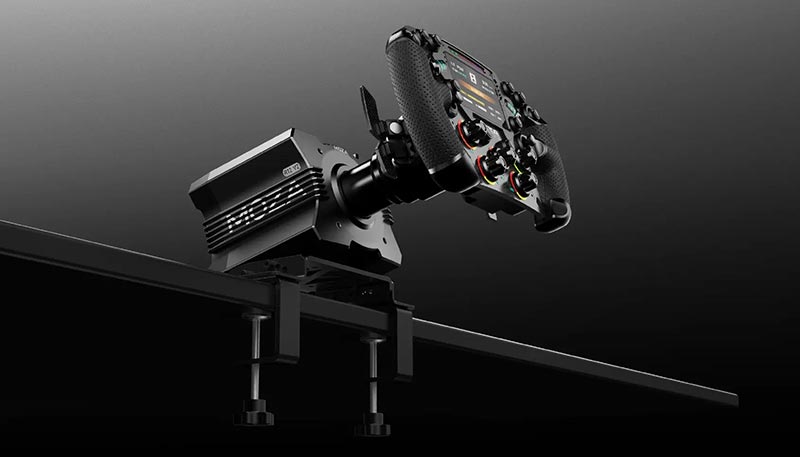

Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.
Hand-off Protection
This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel. The NextGen3.0 also introduces Hand-off Protection Mode 2, providing protection without disrupting drifting. Additionally, it enhances force feedback response speed and overall driving sensations.
| SKU | MOZA-R12 |
| Rotation | 90º to 2,700º |
| Sensor | 21-Bit magnetic encoder 2,097,152 steps per revolution 0.00017° resolution |
| Force Feedback | Direct drive 12 Nm peak torque / 216 W peak power |
| Materials | Aviation-grade aluminum alloy |
| Dimensions | 225.87 x 156.68 x 123.99 mm |
| Weight | 7.50 kg |
| Warranty | 1 Year |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 1 Year |

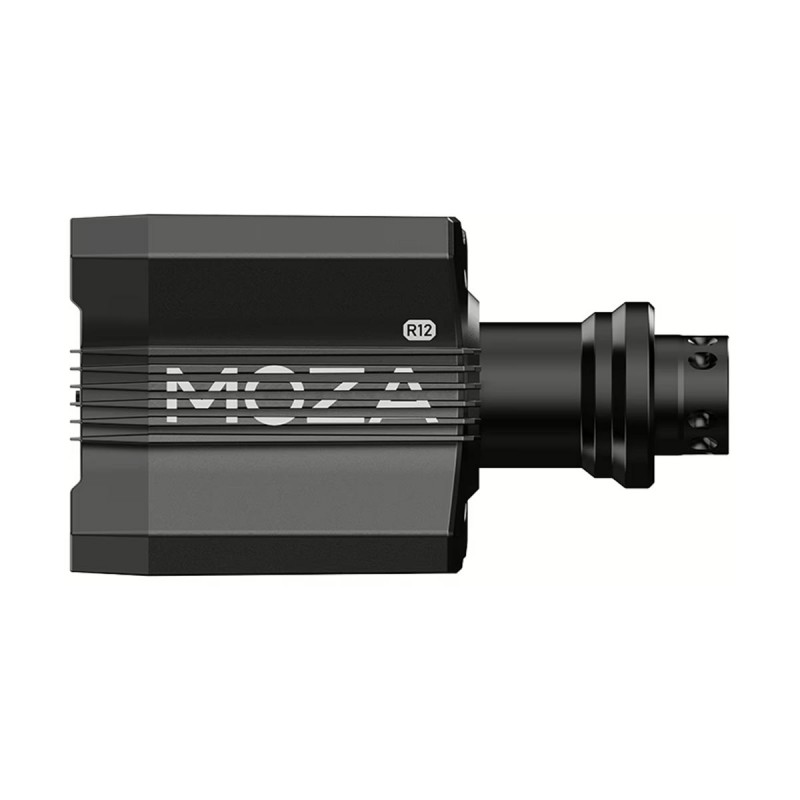

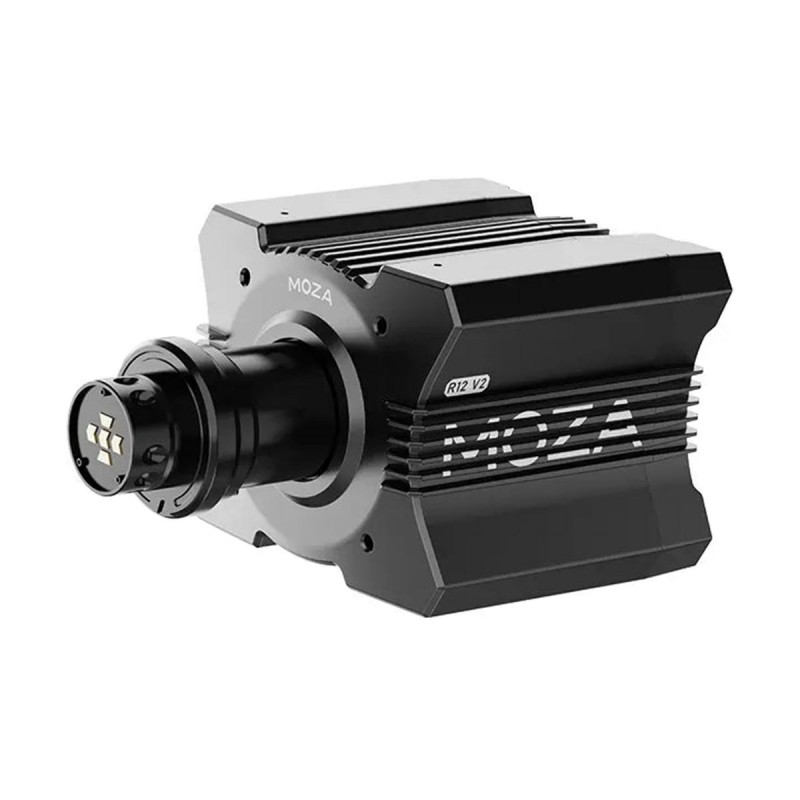

MOZA R12 V2 Direct Drive Wheel Base, 12Nm Force Feedback
- Direct Drive Wheel Base
- Range of Motion: 90º to 2,700º (7.5 Turns Max)
- Steering Sensor: 21-Bit Magnetic Encoder
- Integrated High-Performance 280MHz Processor
- 2,097,152 Steps Per Revolution
- 0.00017° Resolution
- Up to 12 N.m. Peak Torque
- NexGen 4.0 Force Feedback Algorithm
- Custom Force Feedback Curve Tuning & FFB Equalizer
- Intelligent Temperature Control System
- Industrial Conductive Slip Ring
- Aviation-Grade Aluminium
- Smart Road Feel Equalizer
- Supports iRacing 360Hz Mode
- Supports MOZA Hand-Off Protection Mode 2
- Supports Quick Release Wheels
- Supports Optional Pedals & Shifter
- Supports Optional Handbrake & E-Stop
- Supports Optional Dash
- 1 Year Warranty
- Product Code: MOZA-R12
