Images are for reference purposes only and product appearances/colours may vary.

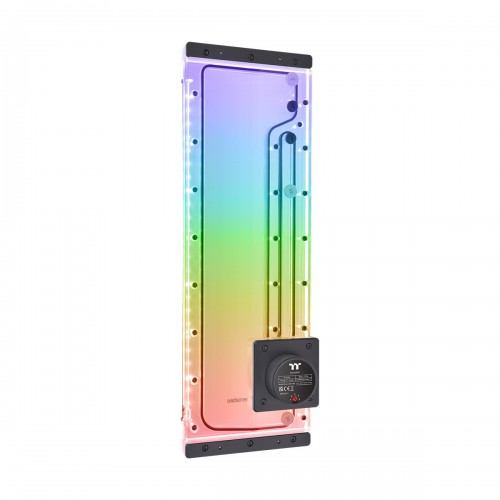

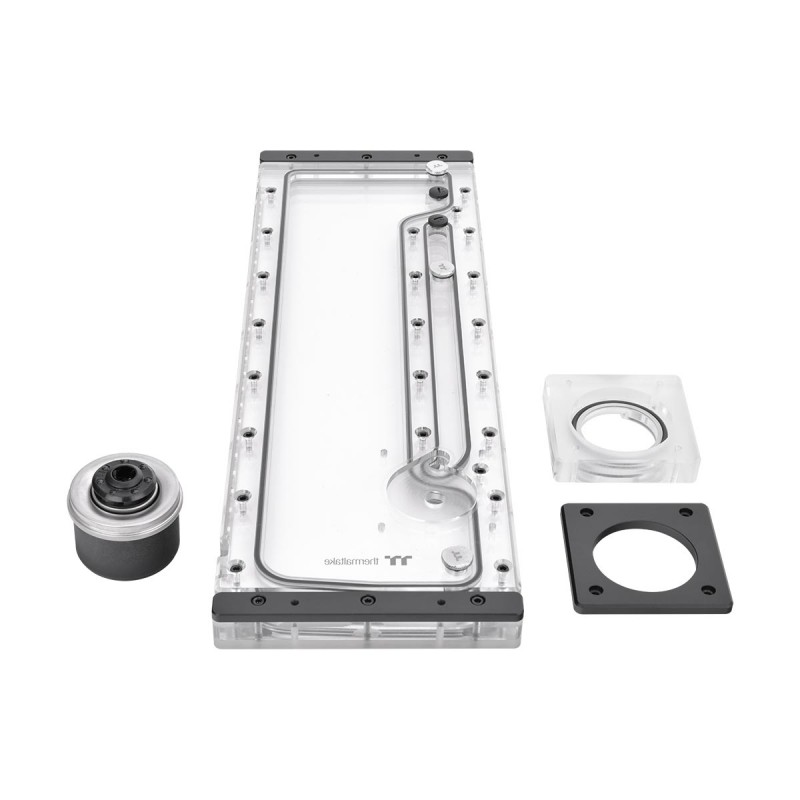

Pacific Core P8 DP-D5 Plus is specifically designed for the Core P8 Chassis, and it is a Modder level reservoir integrated with a high-performance D5 pump. It’s a distribution plate with a pre-installed D5 pump, the Thermaltake Core P8 DP-D5 can release the limit for Core P8 Chassis. It can perfectly integrate and upgrade your build. For those who are into RGB, it can be synced with Thermaltake RGB PLUS ecosystem and fulfil your request. Controlled by the patented TT RGB PLUS 2.0 Software and the app, P8 DP-D5 Plus’s 24 LEDs light up the distro plate with stunning customizable RGB lighting. It features 24 addressable LEDs with 16.8 million RGB colors. The lighting is compatible with TT RGB PLUS 2.0 and ASUS, GIGABYTE, MSI, and ASROCK RGB software. Core P8 DP-D5 Plus simplifies the tube structure of liquid cooling and delivers exceptional space savings for the Core P8 chassis. It not only has excellent pressure resistance to sustain the output up to 50 PSI (pounds per square inch) from the pump, but can also guarantee the overall product durability. High performance pump achieving 1135 L/hr and having a lifecycle of 50,000 hours MTBF.

SKUCL-W345-PL00SW-A
Lighting24 ARGB LEDs
CompatibilityThermaltake Core P8 Chassis
MaterialsPMMA
Capacity450 ml
Maximum Head4.5 m
Maximum Flow Rate1,135 L/h
Maximum Pressure50 PSI
Input Voltage12v / 5v
Power Input37w / 4.8w
Connector4-Pin
Pump SpeedP1: 1,800 RPM
P2: 2,550 RPM
P3: 3,300 RPM
P4: 4,050 RPM
P5: 4,800 RPM
Screw ThreadG 1/4

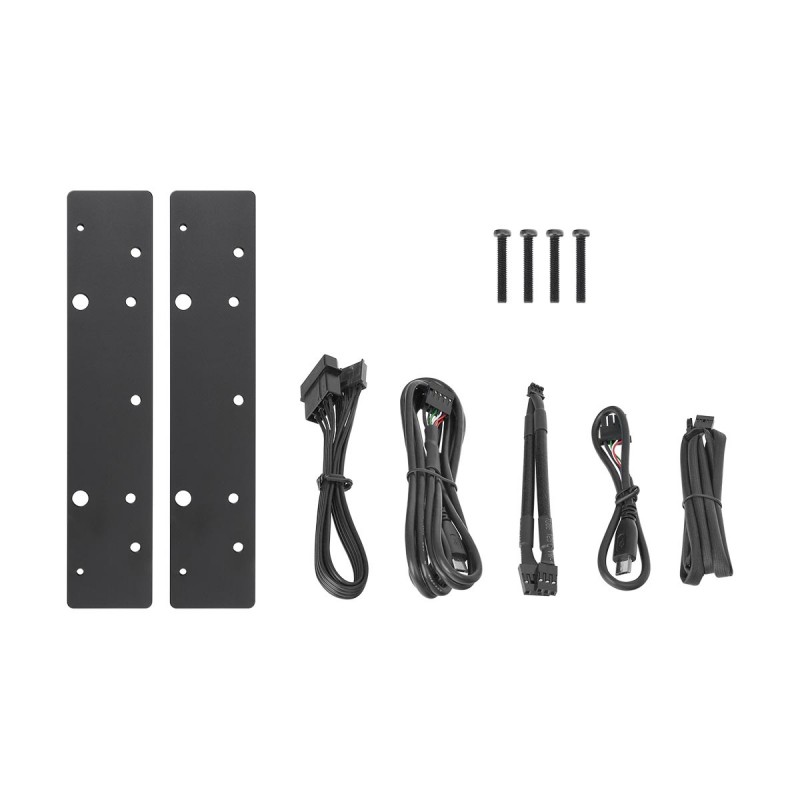

Parts Included5 x Stoppers (G 1/4)
InterfaceUSB 2.0 Internal Header Connector (9-Pin)
System CompatibilityWindows 10 / 11
Dimensions554 x 170 x 85 mm
Warranty2 Years
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration2 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

Thermaltake Pacific Core P8 DP-D5 Plus Distro-Plate / Pump Combo with ARGB Lighting

  • Product Code: CL-W345-PL00SW-A
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock with Supplier: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

    Low Stock Level
  • R6,751



Price displayed is already subject to a 4% discount for EFT payments
