Images are for reference purposes only and product appearances/colours may vary.

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically. Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed. The VRM heatsink covers the upper MOS and helps dissipate the heat. High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings. Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

CPU
  • Socket AM5 supports AMD Ryzen 7000 Series Desktop Processors
Chipset
  • AMD B650
Memory
  • 4 x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
  • Support Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO
Onboard Graphics

Integrated Graphics Processor:

  • 1 x HDMI
    * Support HDMI 2.1 FRL, maximum resolution of 4K 60Hz
  • 1 x DisplayPort
    * Support DP 1.4, maximum resolution of 8K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC4080 Codec

  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
LAN
  • Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication Module

AMD Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.2
Expansion Slots

CPU:

  • 1 x PCI-E x16 slot
    * PCI_E1 PCIe 4.0 supports up to x16

Chipset:

  • 1 x PCI-E x16 slot
    * PCI_E2 PCIe 4.0 supports up to x4
  • 1 x PCI-E x1 slot
    * PCI_E3 PCIe 3.0 supports up to x1
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 2 x M.2 slot
    * M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    * M.2_2 supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Chipset:

  • 1 x M.2 Slot
    * M.2_3 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 6 x SATA 6G port

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

* SATA_A1~A2 do not support RAID function.

USB

Rear:

  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type A
  • 3 x USB 3.2 Gen2 Type A
  • 1 x USB 3.2 Gen2x2 Type C

Front:

  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type C
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 2 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 1 x Pump Fan
  • 6 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Tuning Controller connector(JDASH)
  • 2 x Addressable V2 RGB LED connector (JARGB_V2)
  • 2 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type C

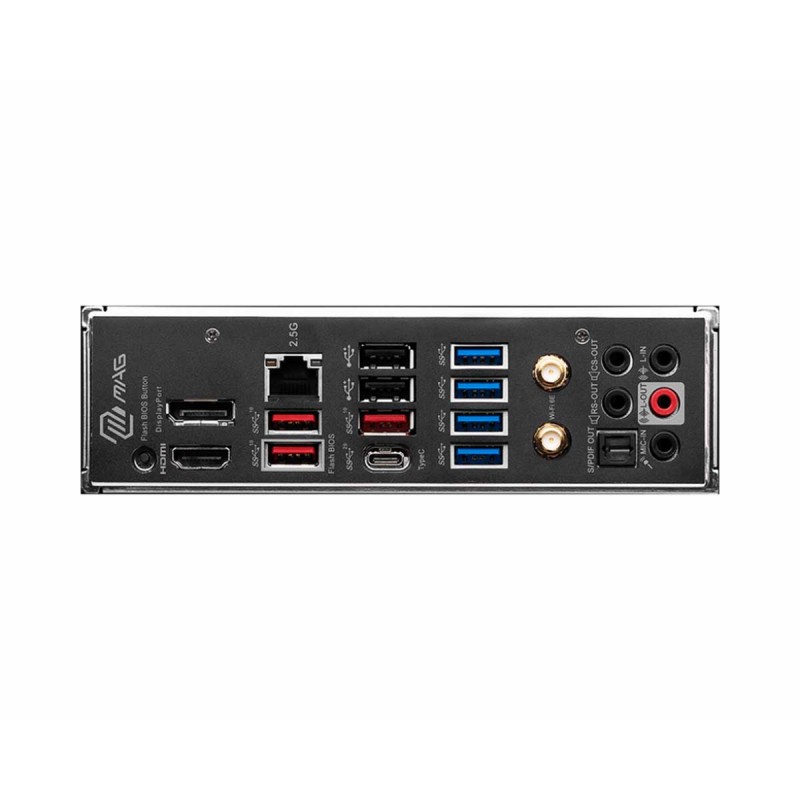

Back Panel Connectors
  • 1 x DisplayPort 1.4
  • 1 x 2.5G LAN Port
  • 2 x USB 2.0 Port
  • 4 x USB 3.2 Gen 1 5Gbps Type-A
  • 1 x Wi-Fi / Bluetooth Antenna
  • 5 x HD Audio Connectors
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1 Port
  • 3 x USB 3.2 Gen 2 10Gbps Type-A
  • 1 x USB 3.2 Gen 2x2 20Gbps Type-C
  • 1 x Optical S/PDIF OUT
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

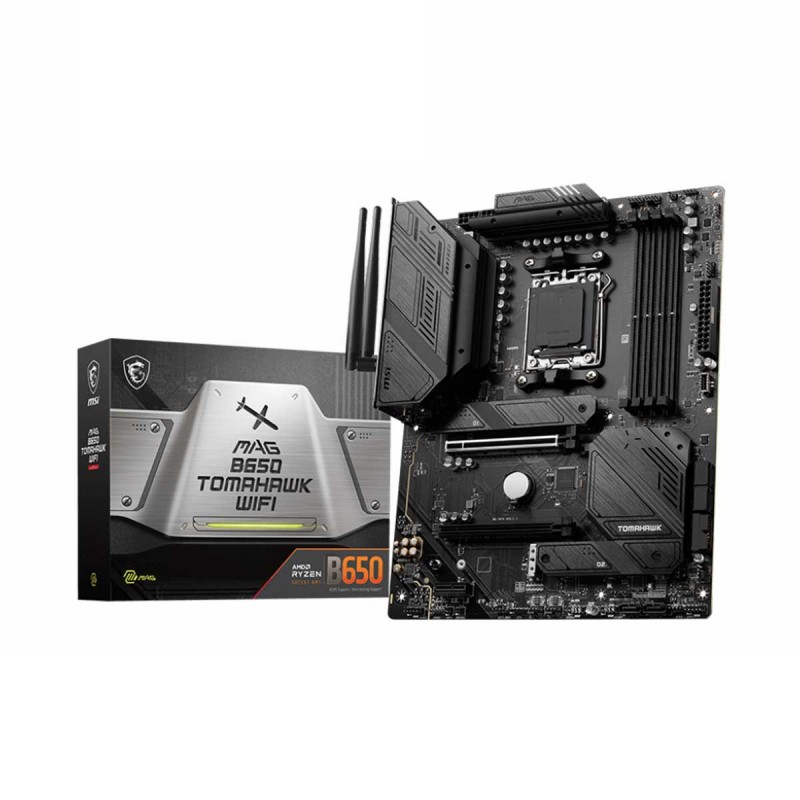

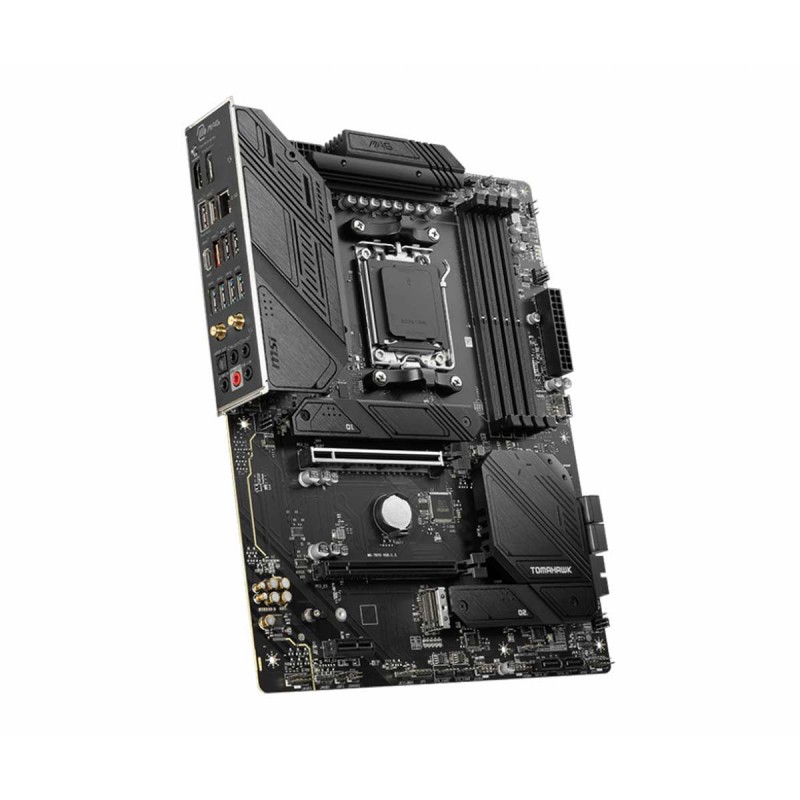

MSI MAG B650 TOMAHAWK WIFI, AMD B650 Chipset, Socket AM5, ATX Desktop Motherboard
