Ncore 100 Air is designed with space-saving and performance in mind. With its small footprint and minimalistic design, Ncore 100 Air is versatile for gamers and content creators. The Ncore 100 Air offers ample space for the latest-generation GPUs, while its thermal layout ensures efficient airflow for optimal cooling.

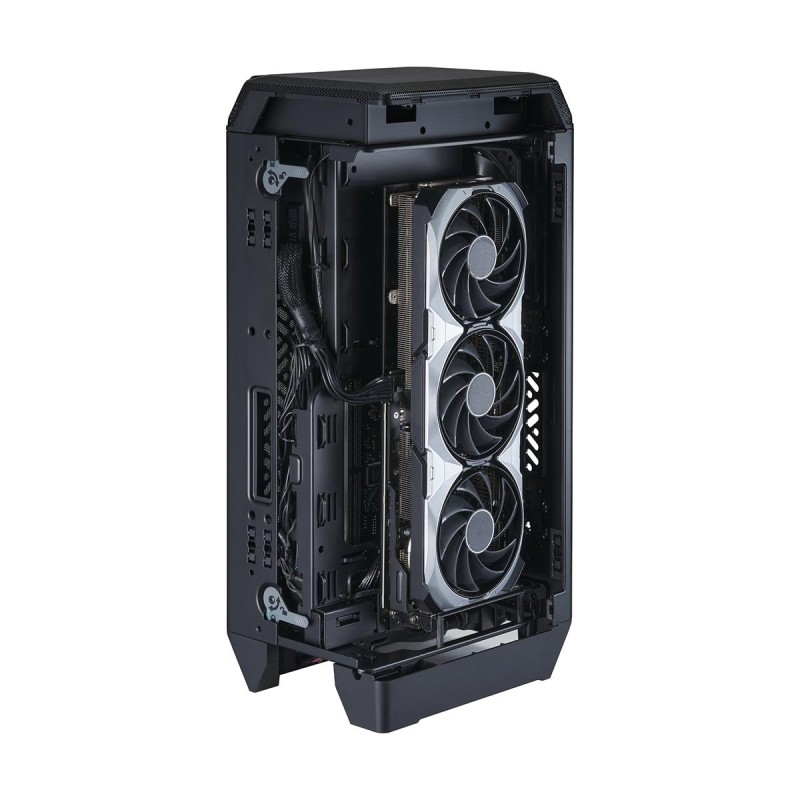

Supports triple-slot graphics cards up to 336 mm in length. The PCIe slot is adjustable to accommodate cards up to 356 mm, ensuring compatibility with the latest-generation GPUs.

The Ncore 100 Air layout has been meticulously designed to offer the most efficient thermal layout. This layout pulls in air from the standing sides of the case, which are its largest surface.

An anodized aluminum shell makes the Ncore 100 Air stand out as a desktop work of art.

The Ncore 100 Air is super compact, with a footprint about the size of a small booklet.

The Ncore 100 Air has a compact volume of just 14.7L; however, its frame is designed to expand up to 16.4L when needed.

Based on Cooler Master’s ‘Make It Yours’ and staying true to our audience, the open frame design make it easy to build or upgrade the PC. Even the cover features tool-less removal for maximum accessibility.

ModelNR100-KNNN-S00
ColourBlack
LightingNone
MaterialsSteel, Plastic, Aluminium
DimensionsNormal: 155mm x 212mm x 449mm
Extended: 172mm x 212mm x 449mm
Form FactorMini Tower
Motherboard SupportMini-ITX
Front I/O2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2x2 Type-C
1 x 3.5mm Combo Audio
1 x Power Button
Side PanelVented
Drive Bays

5.25": 0
3.5" / 2.5" Combo: 0
3.5": 0
2.5": 1

Expansion Slots2
Fan Support

Front: None
Top: 1 x 120mm (included)
Back: None
Bottom: None
Side: 1 x 120mm (included)

Radiator Support

Front: None
Top: None
Back: None
Bottom: None
Side: None

Clearances

CPU Cooler: 70mm (50mm with taller GPUs)
GPU Length:

  • Normal Mode, 50mm CPU Cooler: 337 x 62 x 180 mm
  • Expanded Mode, 50mm CPU Cooler: 357 x 79 x 180 mm
  • Normal Mode, 70mm CPU Cooler: 337 x 42 x 180 mm
  • Expanded Mode, 70mm CPU Cooler: 357 x 59 x 180mm

PSU Length: 100mm

Weight3.90 kg

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration2 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

Cooler Master NCORE 100 AIR Mesh Mini Tower Mini-ITX Case — Black

- Mini Tower Mini-ITX Form Factor
- 2 x USB Type-A 5Gb/s Ports
- 1 x USB Type-C 20Gb/s Port
- 1 x 3.5mm Combo Jack
- 1 x 2.5" Drive Bay
- Up to 2 x 120mm Fans
- Includes 2 x 120mm Fans
- Cooler Clearance: Up to 70mm
- GPU Clearance: Up to 357mm
- Expandable Open Frame Design
-
Volume: 14.7L Expandable to 16.4L
-
Tiny Footprint: ~A Small Booklet
- Includes 240mm PCIe 4.0 x16 Riser Cable
- 2 Year Warranty

  • Product Code: NR100-KNNN-S00
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments
