The STEALTH series excels in high chassis compatibility, supporting numerous manufacturers. It enables PC DIY enthusiasts and gamers alike to effortlessly assemble personalized computer setups without constraints. X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 X3D gaming Performance enhance & Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode. STEALTH series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Our cutting-edge motherboard is designed for the ultimate DIY experience.

CPU	AMD Socket AM5 Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors
Chipset	AMD B850
Memory	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR Support for native HDMI 2.1 TMDS compatible ports
Audio	Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel The back panel line out jack supports DSD audio. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	1 x Realtek 5GBe LAN 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
Wireless Communication Module	Realtek Wi-Fi 7 RTL8922AE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11be 160MHz wireless standard Bluetooth 5.4
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs The M2B_CPU connector becomes unavailable when an AMD Ryzen 8000 Series Phoenix 2 processor is used. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices
USB	CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support CPU+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x power button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Back Panel Connectors	1 x HDMI port 2 x antenna connectors (2T2R) 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	ATX ATX Form Factor with Reverse Connectors 30.5cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

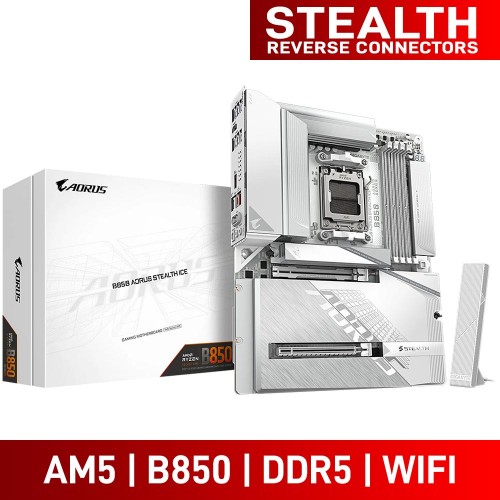

Gigabyte B850 AORUS STEALTH ICE with Wi-Fi, AMD B850 Chipset, Socket AM5, Reverse ATX Desktop Motherboard

- Socket Socket AM5, AMD B850 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slots (x4 electrical)
- 2 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 2 x SATA 3.0 Ports, Supports RAID 0 / 1
- 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- DriverBIOS for Native Wi-Fi Support
- 1 x Rear HDMI 2.1
- 1 x Rear USB Type-C 10Gb/s
- 2 x Rear USB Type-A 10Gb/s, 4 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1 Ports
- 2 x Rear Audio Jacks, 1 x S/PDIF Out
- M.2 EZ-Latch Click & M.2 EZ-Latch Plus
- M.2 Thermal Guard L & M.2 Thermal Guard Ext
- M.2 EZ-Flex M.2 Backplate
- PCIe EZ-Latch & Wi-Fi EZ-Plug
- EZ-Debug Zone for Boot Diagnostics
- Q-Flash Plus - Update BIOS without CPU / RAM / GPU
- 3 x ARGB Gen2 Headers
- Form Factor: Stealth ATX with Reverse Connector Design
- 3 Year Warranty

Product Code: GA-B850-AORUS-STEALTH-ICE
