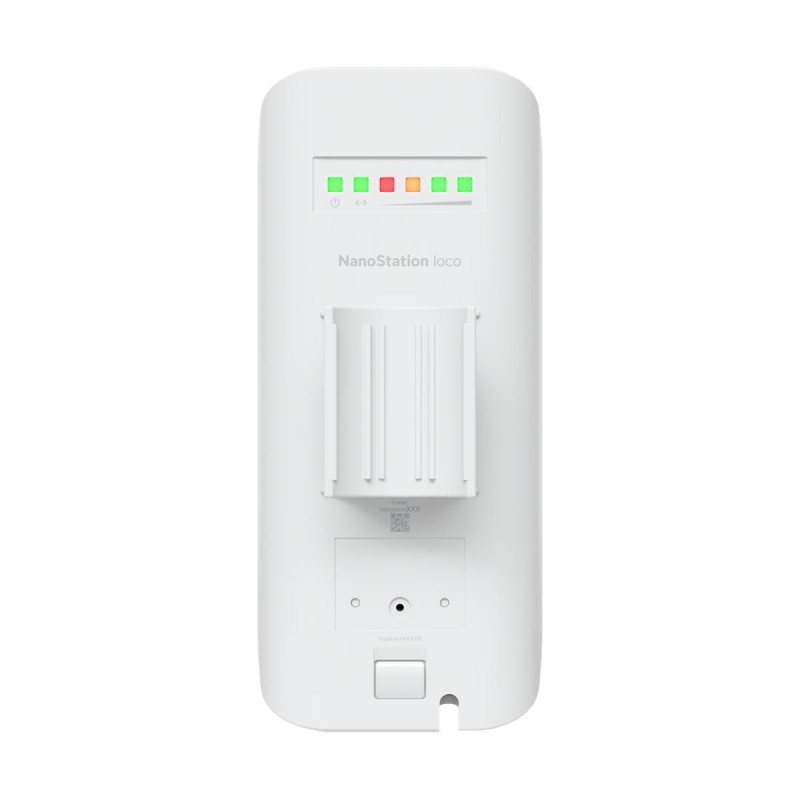

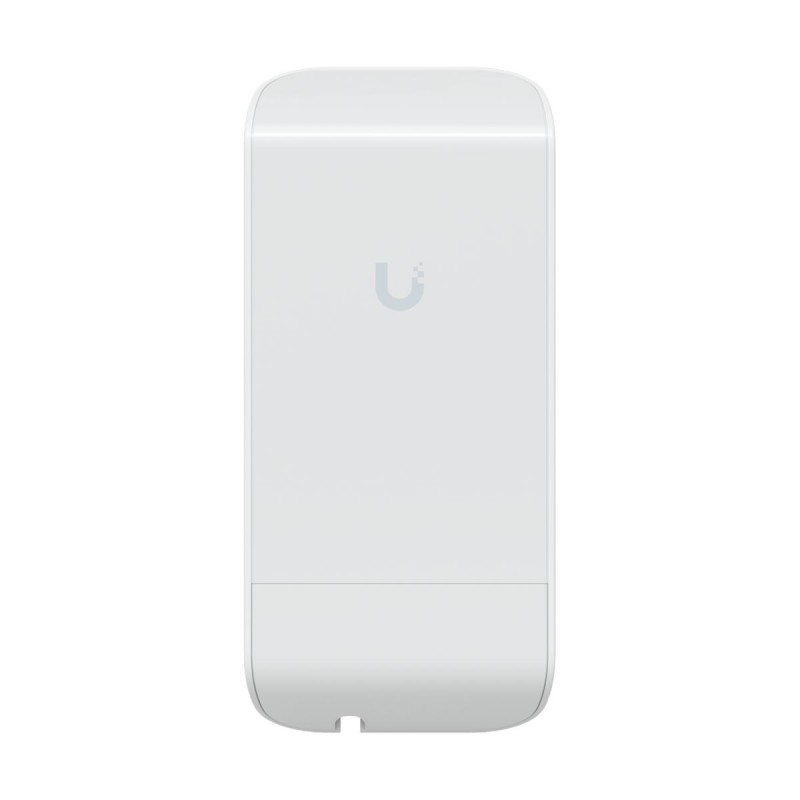

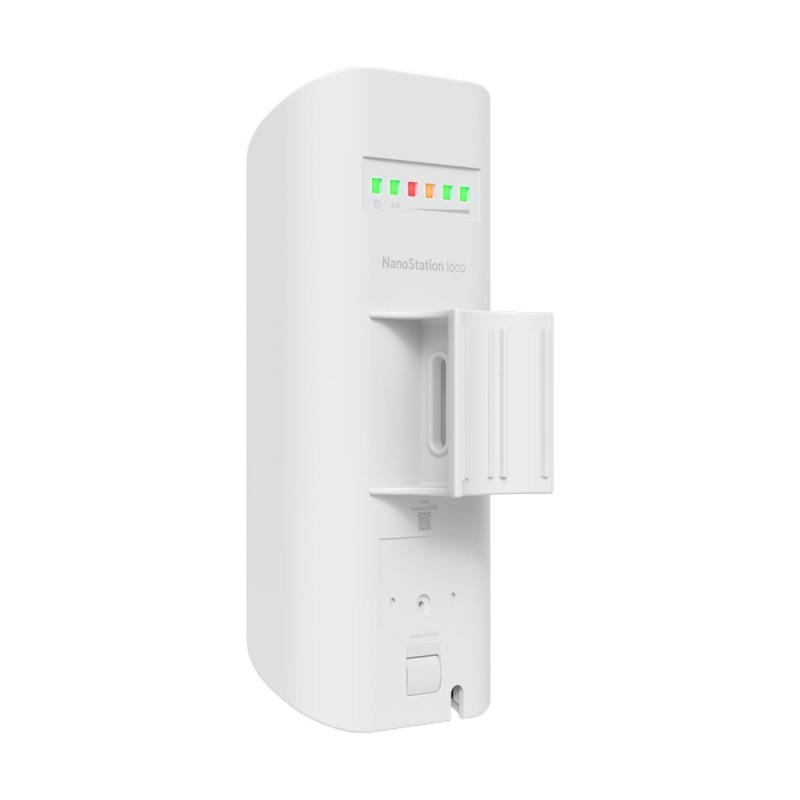

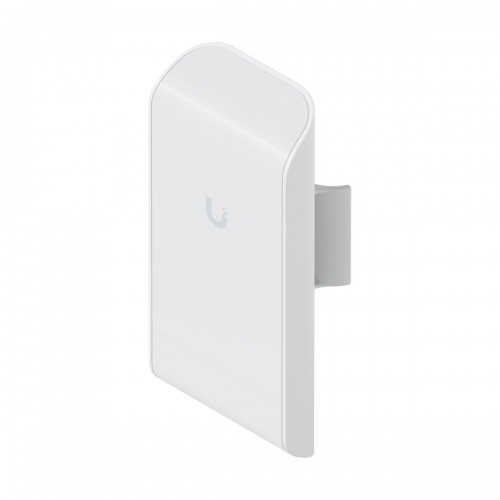

The Ubiquiti UISP LocoM2 is a high-performance 2 GHz 8dBi radio designed for long-range wireless communication. Engineered with airMAX technology, the LocoM2 provides exceptional throughput and low latency, making it an ideal solution for point-to-point links, remote network access, and expanding coverage in outdoor environments. Its compact, weatherproof design ensures reliable performance in harsh conditions, while the integrated radio and antenna simplify deployment.
| Model | LocoM2 |
| Wireless Standard | Ubiquiti airMAX |
| Maximum Speed | Up to 300 Mbps |
Connectivity
| 1 x 10/100 RJ45 Ethernet Port |
| WPS | No |
| Security | N/A |
Antennas
| 8.5 dBi |
Warranty
| 1 Year |
Full Specs
| Dimensions | 161 x 31 x 80 mm |
| Weight | 180 g |
| Power Supply (PoE) | 24V, 0.5A |
Max. Power Consumption
| 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | 2412-2462 MHz |
Gain
| 8.5 dBi |
Networking Interface
| (1) 10/100 Ethernet Port |
Processor Specs
| Atheros MIPS 24Kc, 400 MHz |
Memory
| 32 MB SDRAM, 8 MB Flash |
Frequency
| 2.4 GHz |
Cross-pol Isolation
| 20 dB Minimum |
Max. VSWR
| 1.4:1 |
Beamwidth
| 60° (H-pol) / 60° (V-pol) / 60° (Elevation) |
Polarization
| Dual Linear |
Enclosure
| Outdoor UV Stabilized Plastic |
Mounting
| Pole-Mount |
Operating Temperature
| 30 to 75° C |
Operating Humidity
| 5 to 95% Noncondensing |
Wireless Approvals
| FCC Part 15.247, IC RS210, CE |
RoHS Compliance
| Yes |
Shock & Vibration
| ETSI300-019-1.4 |
| Manufacturer |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information |
| Warranty Duration | 1 Year |
