The ZenWiFi XD6 system consists of up to a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home! ASUS ZenWiFi XD6 gives you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection. ZenWiFi XD6 puts your WiFi into top gear! With a total bandwidth of up to 5400 Mbps, it's up to 2.2X faster than WiFi 5 routers. AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app. Instant Guard gives you one-click secure internet access via ZenWiFi XD6 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi XD6 , you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs! ZenWiFi XD6 works perfectly with smart-home services- including Alexa skills. Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

ModelZenWiFi XD6S (W-2-PK)
Wireless StandardIEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Maximum Speed802.11a: Up to 54 Mbps
802.11b: Up to 11 Mbps
802.11g: Up to 54 Mbps
802.11n: Up to 500 Mbps
802.11ac: Up to 4333 Mbps
802.11ax (2.4GHz): Up to 574 Mbps
802.11ax (5GHz): Up to 4804 Mbps
Connectivity

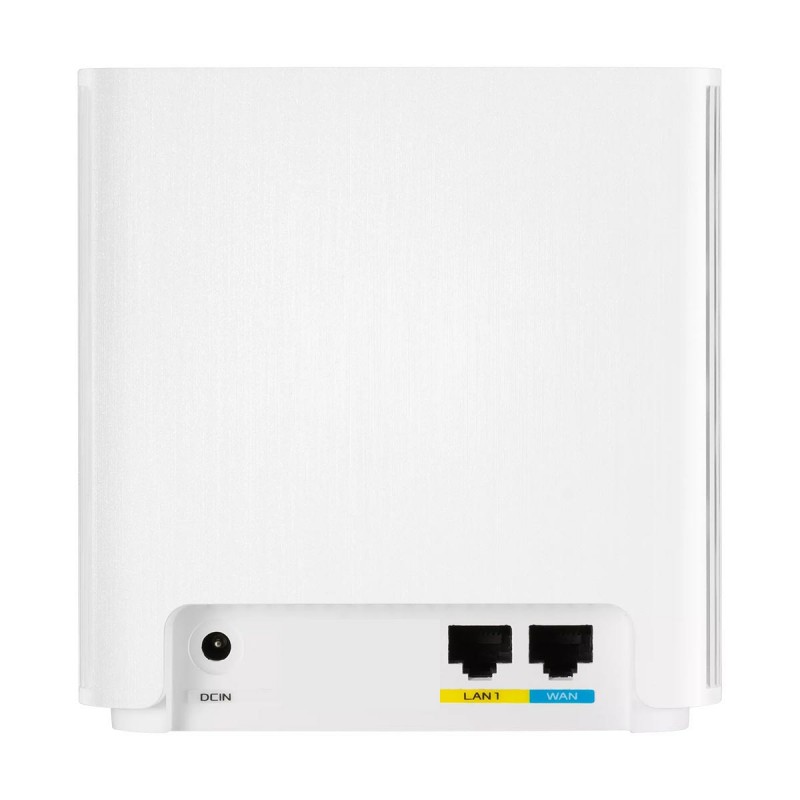

1 x 100/1000 RJ45 WAN/LAN Port
1 x 100/1000 RJ45 LAN Port
WPSYes
SecurityWPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS Support
Antennas
6 x internal
Warranty
3 Years

Detailed Information

Model NameXD6S (W-2-PK)
Network StandardIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product SegmentAX5400 Ultimate AX Performance: 5742 Mbps + 4804 Mbps
AX TechnologyYes
Data Rate802.11a: Up to 54 Mbps
802.11b: Up to 11 Mbps
802.11g: Up to 54 Mbps
WiFi 4 (802.11n) (1024QAM): Up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM): Up to 4333 Mbps
WiFi 6 (802.11ax (2.4GHz): Up to 574 Mbps
WiFi 6 (802.11ax) (5GHz): Up to 4804 Mbps
AntennaInternal Antenna x 6
Transmit/Receive2.4GHz 2x2
5GHz 4x4
Processor1.5 GHz Tri-Core Processor
Memory128 MB Flash
512 MB RAM
Boosts SpeedOFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM High Data Rate
20/40/80/160 MHz Bandwidth
Operating Frequency2.4 GHz / 5 GHz
PortsRJ45 for Gigabit BaseT for WAN/LAN x 1
RJ45 for Gigabit BaseT for LAN x 1
ButtonsWPS Button
Reset Button
LED IndicatorsPower LED
Power SupplyAC Input: 110v-240v, 50-60Hz
DC Output: 12v with max 2A current
Package ContentsZenWiFi XD6S
RJ45 Ethernet Cable
Power Adapter
Wall Mount Kit
Quick Start Guide
Warranty Card
Product Weight (Each)425g
AiMeshAiMesh
Primary AiMesh Router
AiMesh Node
Router AppASUS Router App
AlexaSupports Alexa Skill
AiProtectionAiProtection Pro
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental ControlsParental Control
Parental Control Customized Internet Schedule
Traffic ControlsAdaptive QoS
Bandwidth Monitor
Bandwidth Limiter
Maximum Bandwidth Limiter Rule: 32
Traditional QoS
Traditional QoS Rule: 32
Real-Time Traffic Monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website History
WirelessIPv6
UTF-8 SSID
Guest Network
Maximum Guest Network Rule: 9
Guest Network Connection Time Limit
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
WiFi MAC Address Filter
Maximum MAC Filters: 64
Wireless Scheduler
Airtime Fairness
Universal Beamforming
Explicit Beamforming
WANInternet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port Forwarding
Maximum Port Forwarding Rule: 64
Port Triggering
DMZ
DDNS
Let's Encrypt
LANDHCP Server
IGMP Snoooping
IPTV
Manually Assign IP Addresses
Maximum Manually Assign IP Rule Address: 64
VPNVPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
AdministrationOperating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
