ASUS TUF GAMING X570-PRO WIFI II takes all the essential elements of the latest AMD processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING X570-PRO WIFI II sports the new TUF GAMING logo and incorporates simple geometric design elements to reflect the dependability that defines the TUF GAMING series.

CPU
  • AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors
Chipset
  • AMD X570
Memory
  • 4 x DIMM, Max. 128GB
  • DDR4 5100(O.C) / 5000(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MT/s Un-buffered Memory
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
Onboard Graphics

Integrated Graphics in AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors

  • 1 x DisplayPort 1.2
    * Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @60Hz
  • 1 x HDMI1.4b
    * Supports HDMI 1.4b with max. resolution 4096 x 2160 @24Hz
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    Audio Shielding
    Rear optical S/PDIF out port
    Premium audio capacitors
    Dedicated audio PCB layers
    Audio cover
LAN
  • 1 x Intel 2.5Gb Ethernet
  • TUF LANGuard
Wireless Communication Module
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth v5.2
    * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Expansion Slots

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 (x16 mode)

AMD Ryzen 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors

  • 1 x PCIe 3.0 x16 (x16 mode)

AMD Ryzen 3000 G-Series / 2000 G-Series Processors

  • 1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD X570 chipset

  • 1 x PCIe 4.0 x16 (max at x4 mode)
  • 2 x PCIe 4.0 x1
Multi-Graphics Technology
  • N/A
Storage Interface

Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors

  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD X570 chipset

  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • 8 x SATA 6Gb/s ports
  • Support Raid 0, 1, 10
USB

Rear USB: Total 7 ports

  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
  • 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

Front USB: Total 7 ports

  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
  • 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 3 x 4-pin Chassis Fan header(s)

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 8 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 2 Front Panel connector (support(s) USB Type-C)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

  • 1 x Addressable Gen 2 header(s)
  • 2 x AURA RGB header(s)
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (14-1pin)
  • 20-5 pin System Panel header

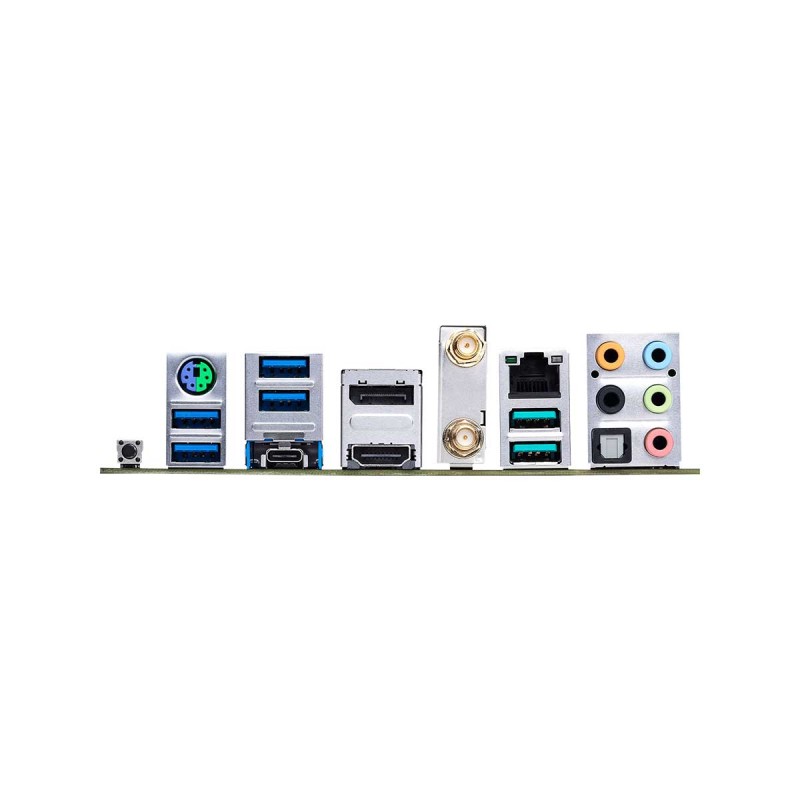

Back Panel Connectors
  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
  • 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi Module
  • 1 x Intel 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button
  • 1 x PS/2 Keyboard/Mouse combo port
I/O Controller
  • N/A
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS TUF PROTECTION

  • ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
  • ASUS Enhanced DRAM Overcurrent Protection
  • ASUS ESD Guards
  • TUF LANGuard
  • ASUS Overvoltage Protection
  • ASUS SafeSlot
  • ASUS Stainless-Steel Back I/O
  • ASUS Q-Design

M.2 Q-Latch

  • ASUS Q-DIMM
  • ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • ASUS Q-Slot

ASUS Thermal Solution

  • Aluminum M.2 heatsink
  • Aluminum heatsink design

ASUS EZ DIY

  • BIOS FlashBack button
  • BIOS FlashBack LED
  • Procool

AURA Sync

  • AURA RGB header(s)
  • Addressable Gen 2 RGB header(s)
Bundled Software

Armoury Crate

  • AURA Creator
  • AURA Sync
  • Two-Way AI Noise Cancelation

AI Suite 3

  • Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 4
  • EZ update
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • DTS Custom for GAMING Headsets
  • Norton Anti-virus software (Free Trial version)
  • WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Windows 10/11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
