FRAME 5000D WORKSTATION
MID-TOWER PC CASE
FILL IT UP WITH THE LATEST HARDWARE
The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.

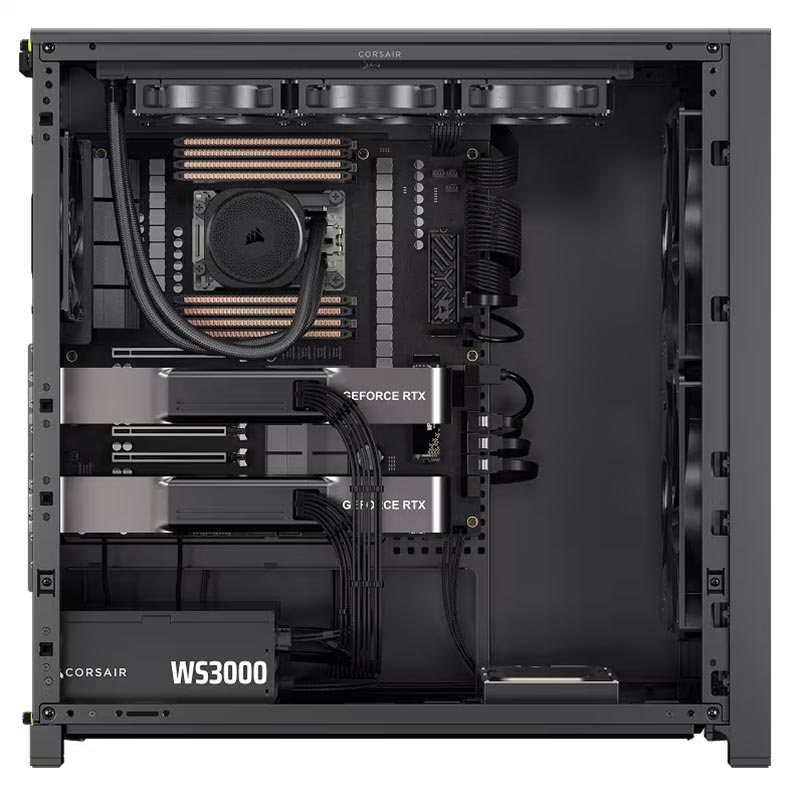

BUILT FOR DEMANDING WORKLOADS

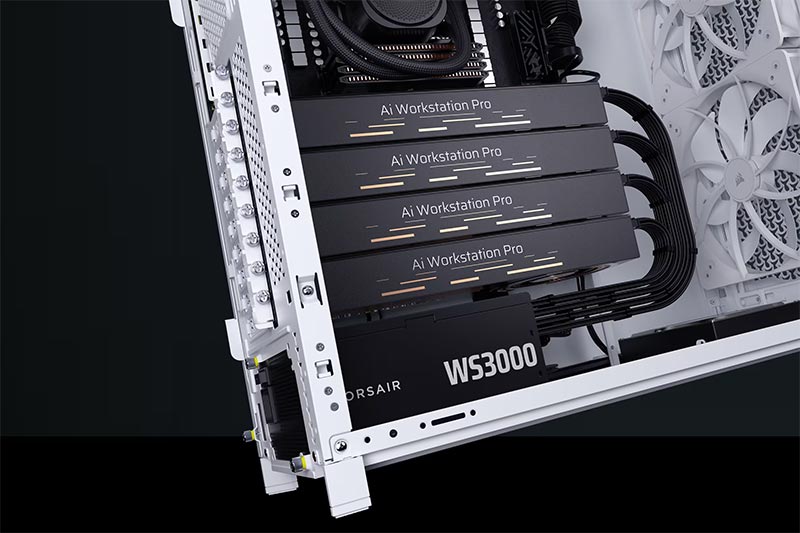

The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.

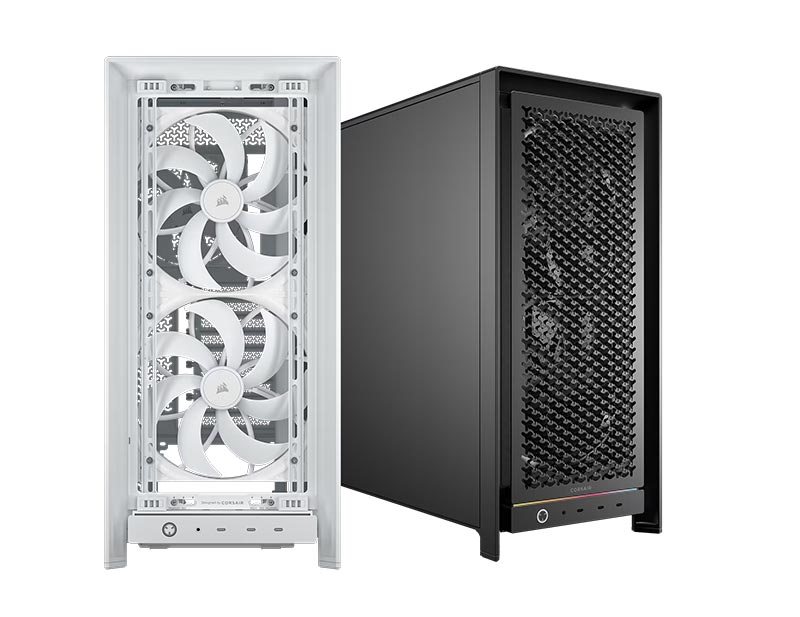

BUILT TO ELIMINATE NOISE
The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.

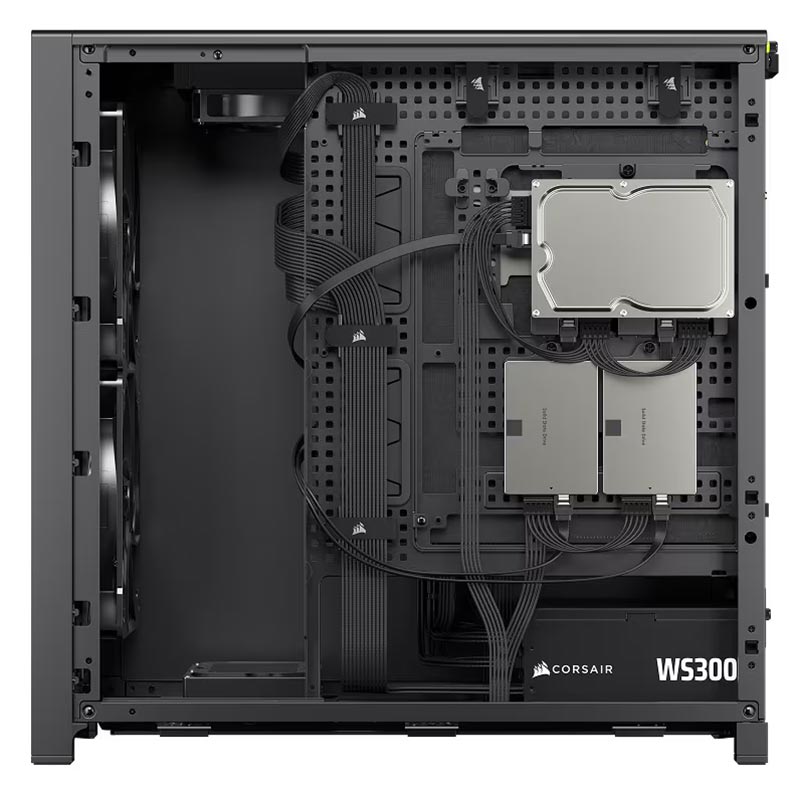

PLENTIFUL STORAGE
Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.

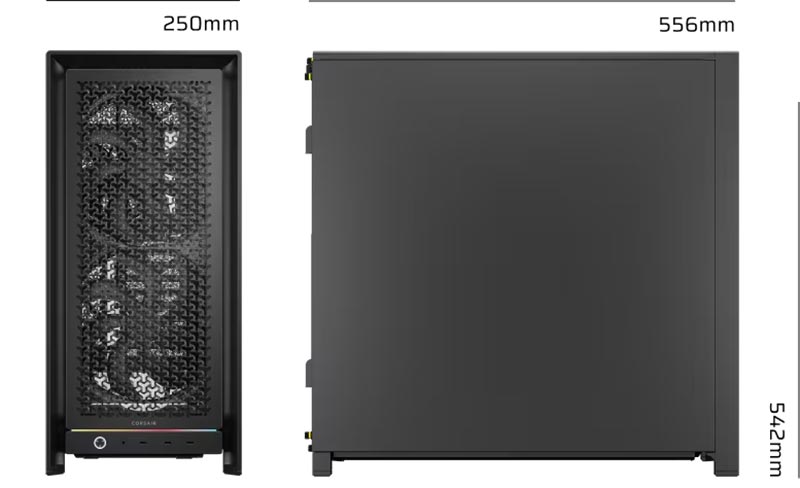

DIMENSIONS
The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.

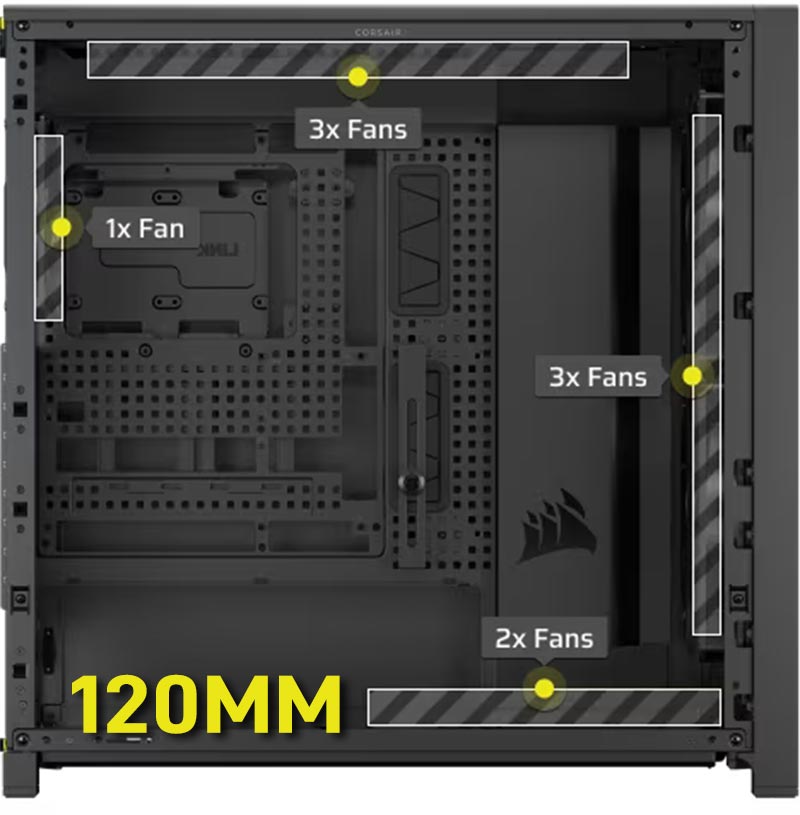

FAN CAPACITY
Includes 2x 200mm intake fans and 1x 140mm exhaust fan with a total of 9x 120mm or 140mm fan mounts for flexible cooling options on every surface of the interior.

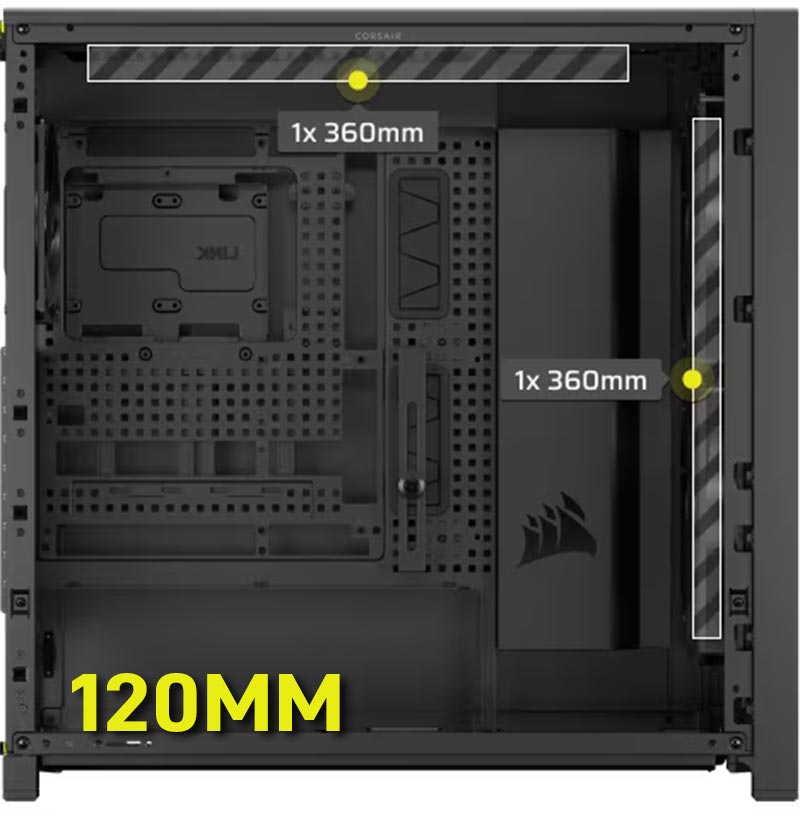

RADIATOR CAPACITY
Mount a 360mm or 280mm radiator in the front and a 360mm or 480mm radiator on top for enhanced airflow.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

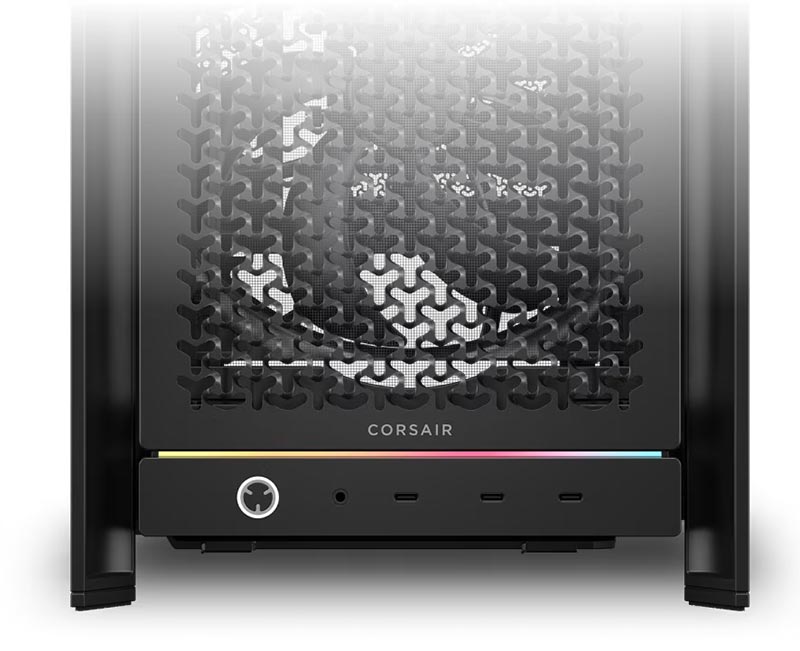

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including 2x USB 3.2 Gen 1 Type-C ports, 1x USB 3.2 Gen 2x2 Type-C port, and a combination audio/microphone jack.
1. Power Button
2. Headphone / Mic Combo Jack
3. 2x USB 3.2 Gen 1 Type-C Ports
4. USB 3.2 Gen 2x2 Type-C Port
MODULAR AND CUSTOMIZABLE
The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.
| Model | CC-9011330-WW |
| Colour | Black |
| Lighting | None |
| Materials | Steel, 3D-Y Airflow Steel, Plastic |
| Dimensions | 556mm x 250mm x 542mm |
| Form Factor | Mid Tower |
| Motherboard Support | SSI-EEB, SSI-CEB, E-ATX, ATX, Micro ATX, Mini-ITX |
| Front I/O | 2 x USB 3.2 Gen1 Type-C |
| Side Panel | Solid |
| Drive Bays | 5.25": 0 |
| Expansion Slots | 8 (or 3 vertical) |
| Fan Support | Front: 3 x 120mm / 3 x 140mm / 2 x 200mm (2 x 200mm fans included) |
| Radiator Support | Front: 360mm / 280mm / 240mm / 140mm / 120mm |
| Clearances | CPU Cooler: 175mm |
| Weight | 15.48 kg |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 2 Years |

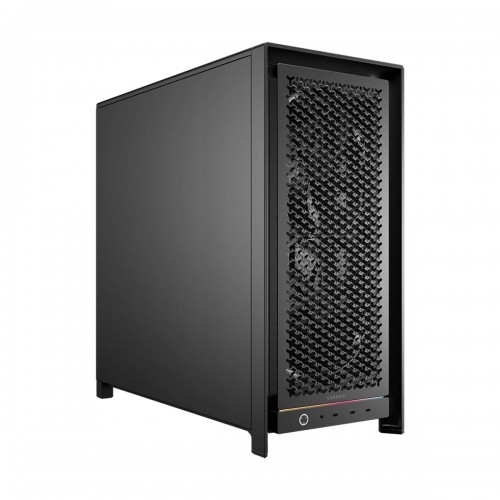

Corsair FRAME 5000D WORKSTATION Modular Tempered Glass Mid Tower SSI-EEB E-ATX Case — Black
- High Air Flow Design To Keep Components Cool
- Modular FRAME Design with InfiniRail Fan Mounts
- Supports Corsair RapidRoute 2.0 Cable Management
- Mid Tower SSI-EEB E-ATX Form Factor
- Colour: Black
- Tempered Glass Side Panel
- Supports Vertically Mounted Graphics Card
- Supports up to 4 x Graphics Cards
- 2 x USB Type-C 5Gb/s Port
- 1 x USB Type-C 20Gb/s Ports
- 1 x 3.5mm Combo Audio Jack
- 2 x 3.5" / 4 x 2.5" Combo Drive Bays
- 2 x 2.5" Drive Bays
- Up to 9 x 120mm / 9 x 140mm / 2 x 200mm Fans
- Includes 2 x 200mm & 1 x 140mm Corsair RS Fans
- Supports up to 1 x 420mm & 1 x 360mm Radiator
- Cooler Clearance: Up to 175mm
- GPU Clearance: Up to 450mm
- Supports Reverse BTF Motherboards
- 2 Year Warranty
- Product Code: CC-9011330-WW
- Availability:
In Stock with Supplier
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
- In Stock with Supplier: 1-3 business days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
-
R3,142
